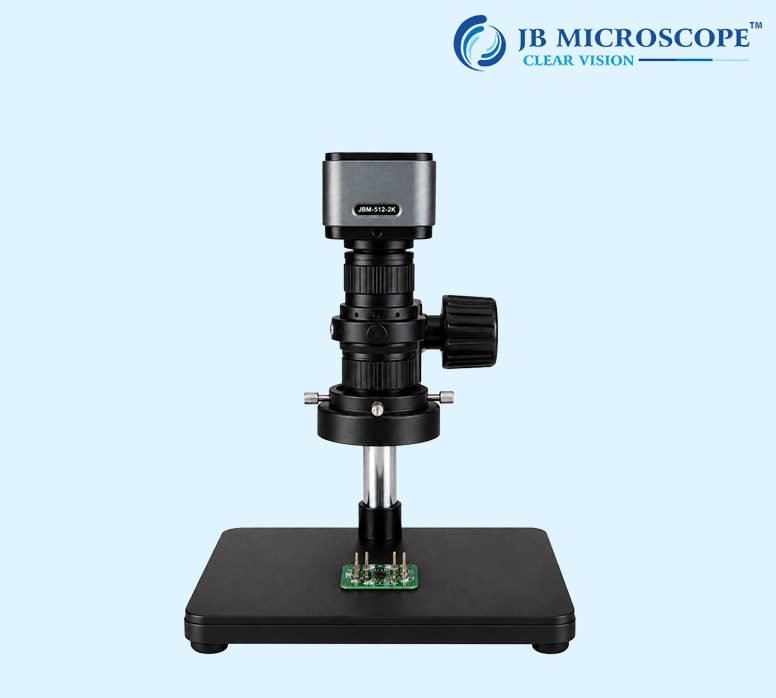

Digital Monozoom microscopes adopts apochromatic parallel optical imaging system and provide high resolution and sharp stereoscopic images, 4K HDMI digital camera with measurement function can work without PC.
Digital Monozoom microscopes adopts apochromatic parallel optical imaging system and provide high resolution and sharp stereoscopic images, 4K HDMI digital camera with measurement function can work without PC.
This microscope is designed for the applications of circuit board, electronics, semi-conductor and related industrial inspection and scientific research areas. Modularization product portfolio and excellent optical performance make it a better choice in these areas.
| Technical Specifications | Value |
|---|---|
| Brand Name | JB MICROSCOPE |
| MODEL | JBM-MZ50 |
| Zoom Ratio | 01:07 |
| Zoom Objective | 0.7X - 5X |
| Eyepiece | 0.4x |
| Working Distance | 100mm |
| Base Vertical Post Height | 240mm |
| Vertical Post Diameter | φ32mm |
| Microscope Body Holder | φ50mm |
| Focus Travel | 50mm |
| Base Size | 320 x 260 x 16mm |
| Material | Metal |
