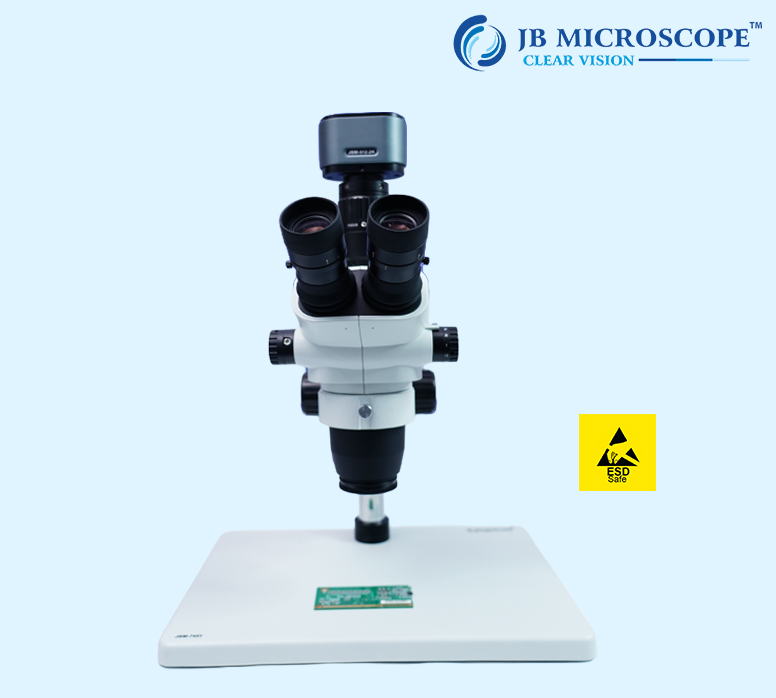

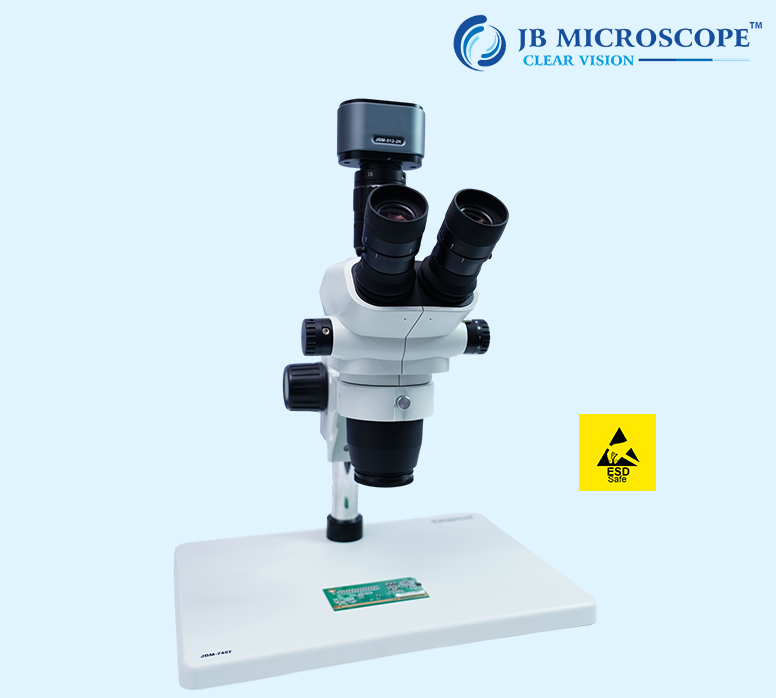

ESD Stereo Zoom Microscope JBM‑PL45

Adopting Greenough optical system, JBM-PL45 with 3D image viewing with high level flatness and depth focusing. Electronic components and PC board with significant depth can be brought into focus from top to bottom for faster and accurate inspection of in industrial field.

• Click stop function: Zoom hand wheel with click stop as a key improvement ensures accurate amplification, is very useful for sample dimension confirm.
• DOF and flatness: Greenough optical system with convergence angle of 10 degree, and working with wide field plan eyepieces, ensures the excellent flatness and depth of field.
• Diverse auxiliary objectives: Three auxiliary objectives 0.5X/0.7X/1.5X for option, to expand JBM-PL45 magnification from 3.3X to 135X. The Max. working distance is 177mm while the Min. is 47mm, to meet all the requirements from different applications.
• Abundant illumination systems: LED/halogen/fluorescence for option, either built-in illuminator or external type is available, provide the best image by choosing a suitable light.
• Types of stands available: B4 Small Plan Base With Pillar Stand, B5 Big Plan Base With Pillar Stand, SZSTL1 Single Pillar Boom Stand, SZSTL2 Double Pillar Boom Stand
• ESD Safety: JBM-PL-45 Series microscopes feature a specialized ESD Safe coating, protecting sensitive components from electrostatic discharges

• LCD Microscope Digital Camera JBM-L13 (13-inch): LCD is a multifunctional all-in-one camera that integrates a 13.3-inch display screen and a 4K image acquisition and processing system.
• Digital Microscope Camera JBM-230-4K (Smart Camera): High precision industrial smart camera JBM series SDK 60FPS industrial fully-integrated flexibility OCR.
• FHD Screen (24-inch): HD screen for crystal-clear viewing. Full HD Display Brings Microscopic Images To Life With Exceptional Color And Contrast.
