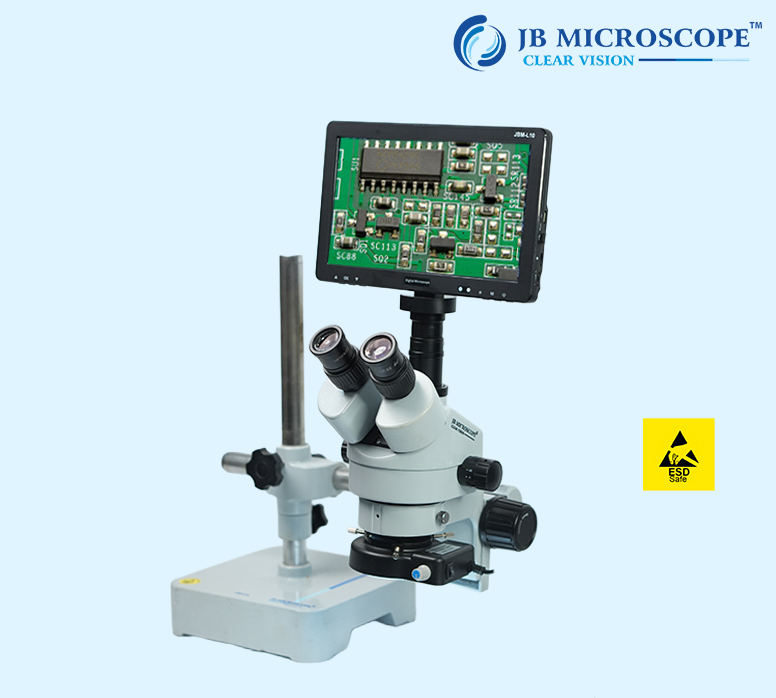

Protect your sensitive components from electrostatic discharges with JBM ESD Safe Trinocular Microscope JBM-EPLT.
Protect your sensitive components from electrostatic discharges with JBM ESD Safe Trinocular Microscope JBM-EPLT.
Provides crisp clear 3D images, long working distance, and a wide field of view. Features 0.67x to 45x continuous zoom with 10x eyepieces, allowing operators to view magnified images through the microscope eyepieces or on a connected digital monitor simultaneously.
Engineered specifically for sensitive SMT, PCB inspection, semiconductor handling, and electronics assembly. The ESD Safe anti-static coating and grounding construction prevent electrostatic discharges from damaging delicate micro-components during microscopic rework and quality assurance.
| Parameter | Specification |
|---|---|
| Brand Name | JB MICROSCOPE |
| MODEL | JBM-EPLT |
| Magnification | 45X (0.67X - 4.5X Continuous Zoom) |
| Working Distance | 150mm |
| Eyepiece | WF10X/22MM high eyepoint, wide-field; Convenient for observers wearing glasses. |
| Objective | 0.67X - 4.5X Stereo Zoom |
| Zoom Ratio | 6.7:1 |
| Stand Type | Boom Stand |
| Vertical Post Height | 380mm |
| Maximum Vertical Post Extended Length | 254mm |
| Base Type / Shape | Heavy Duty Base, Rectangle |
| Base Dimension | 285 x 260 x 15mm |
| Surface Treatment | Electroplating Black / Silver |
| ESD Protection | ESD Safe housing & grounding for static-sensitive electronics |
| Dual Viewing | Trinocular port for simultaneous visual eyepiece & live monitor viewing |
