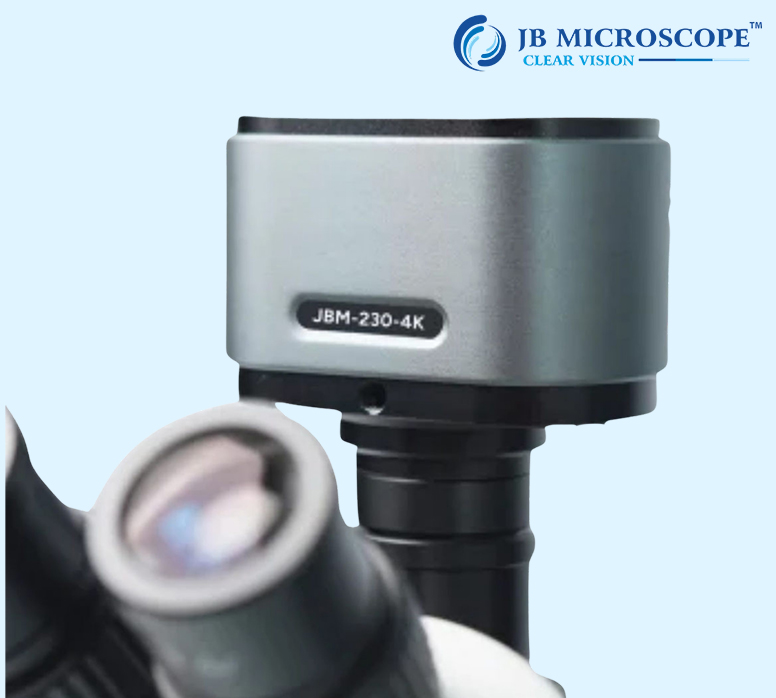

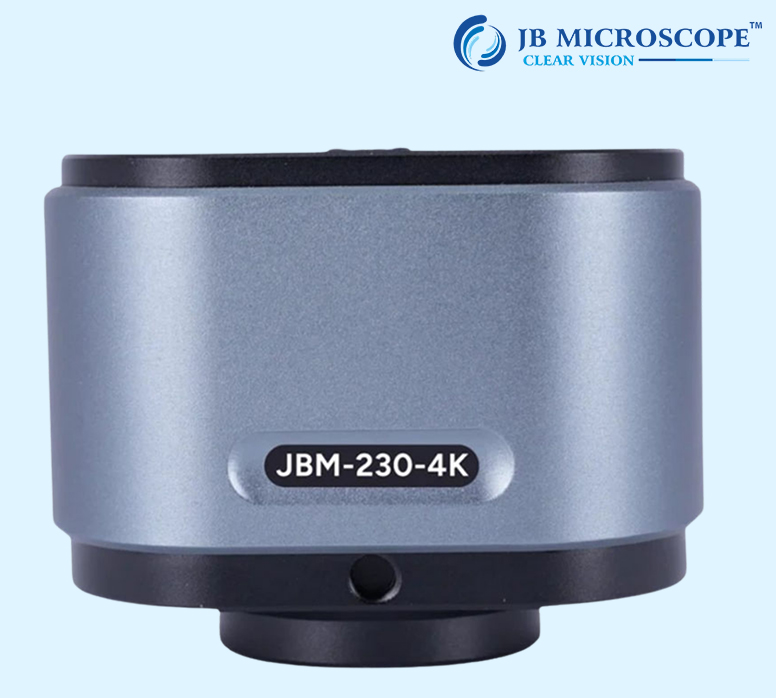

DIGITAL MICROSCOPE CAMERA JBM‑230-4K

High Precision Industrial Smart Camera JBM Series SDK with 60 FPS High Speed, Industrial Grade, Fully Integrated Flexibility, and OCR Technology.

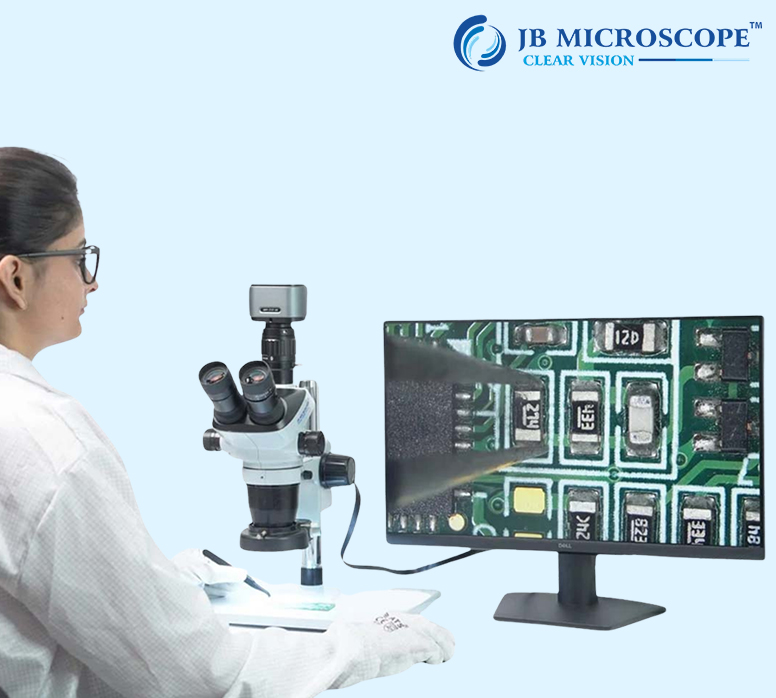

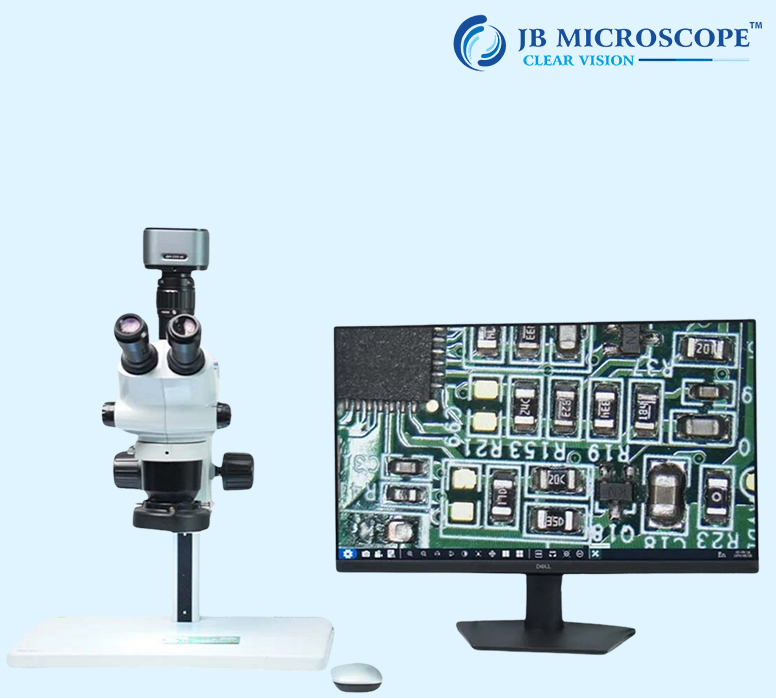

This is an ultra-HD 4K industrial camera with resolution of 3840X2160 pixels, adopting standard HDMI interface. It can be used for industrial automation demonstration, maintenance and inspection. Use HDMI splitter to project to a large FHD Screen for the best display.

• Ultra-HD 4K resolution (3840X2160 pixels) at 60 FPS high speed
• Sony CMOS IMX678A Sensor (1/1.8 Inch) with 2.0µmx2.0µm pixel size

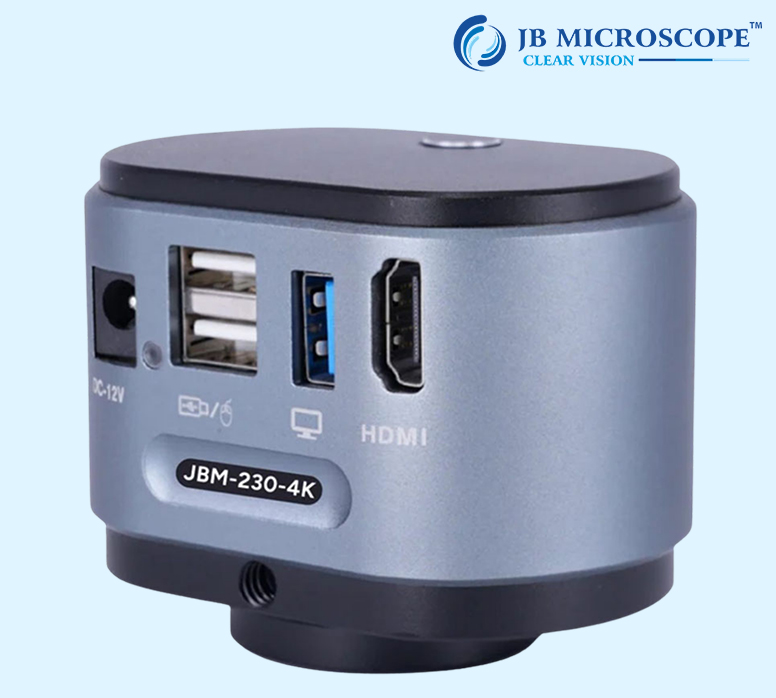

• HDMI (Type A) & USB dual output interface
• Inbuilt measurements software with partial magnification and two/four screen comparison
• AWB color correction (automatic/manual R.G.B independent setting)
• 8 cross lines and 2 dotted lines with configurable color, width, and position
• Horizontal and vertical image mirroring, sharpness, contrast, color gain control
• Wireless infrared mouse operation

Measuring tools for point, lines, polylines, rectangles, custom polygons, parallel lines, angles, concentric circles, center distance, two-point fixed circles, three-point fixed circles, center lines, crosshairs, arcs, wire spacing and more. Operating system: Windows XP 32bit; Windows 7/8/10 32/64bit.

• 4KFHD Screen (27-inch): 4K Ultra FHD screen for crystal-clear viewing. Full HD Display Brings Microscopic Images To Life With Exceptional Color And Contrast.
• 2KFHD Screen (24-inch): HD screen for crystal-clear viewing Full HD Display Brings Microscopic Images To Life With Exceptional Color And Contrast.
• Screen (17-inch): Screen for crystal-clear viewing. Display Brings Microscopic Images To Life With Exceptional Color And Contrast.

NOTE: Kindly use 4K screen to see the 4K resolution of this Model-230-4K
