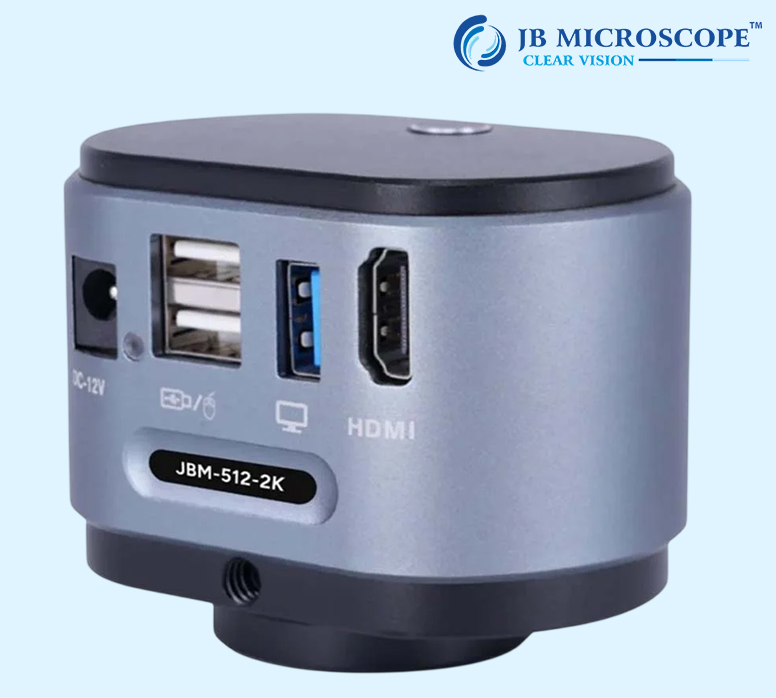

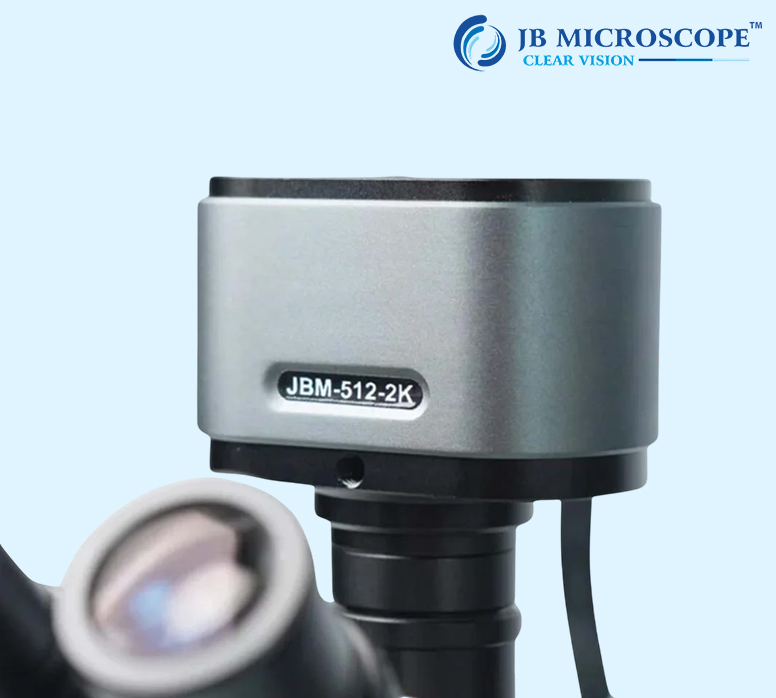

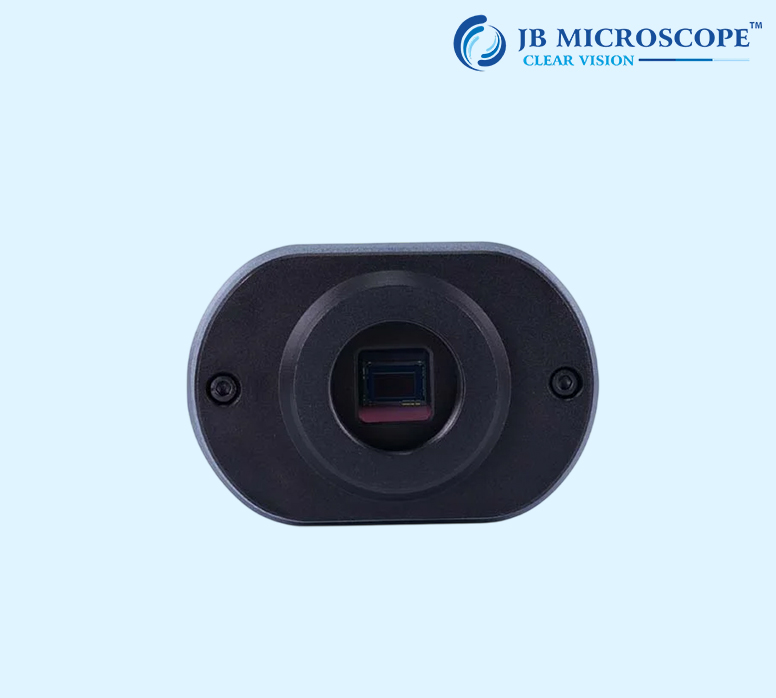

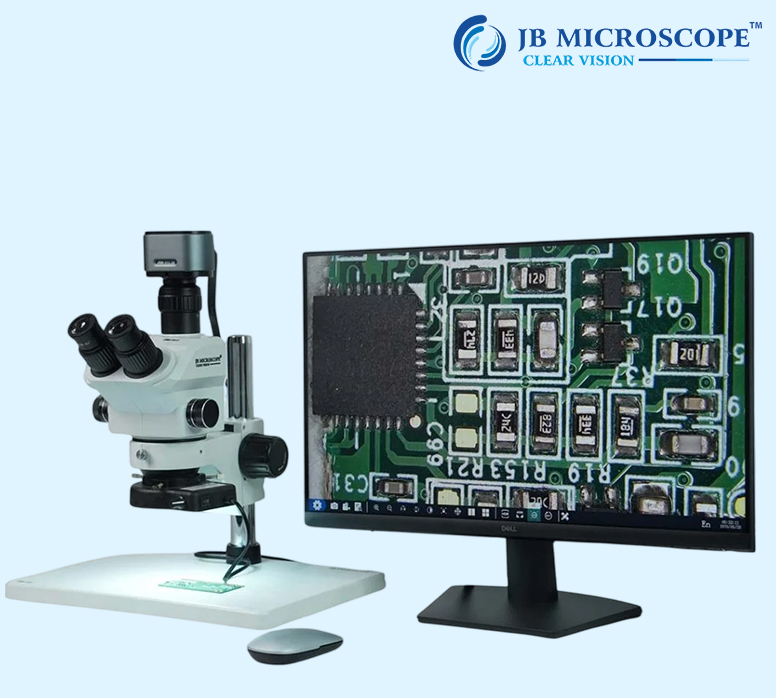

Digital Microscope Camera JBM-512-2K with 2K High Resolution, HDMI Output, High Sensitivity Sony Sensor, and Easy to Use Plug & Play connectivity for industrial microscope imaging and inspection.
Digital Microscope Camera JBM-512-2K with 2K High Resolution, HDMI Output, High Sensitivity Sony Sensor, and Easy to Use Plug & Play connectivity for industrial microscope imaging and inspection.
NOTE: Kindly use 4K screen to see the 4K resolution of this Model-512-2K
| Technical Specification | Value |
|---|---|
| Brand | JB MICROSCOPE |
| Model | JBM-512-2K |
| Sensor | Sony CMOS IMX335 1/1.8 Inch |
| Application | Microscope HD Industrial Camera |
| Pixel Size | 2.0µm x 2.0µm |
| Interface | HDMI (Type A), USB Pen Drive |
| HDMI Image Resolution | 5MP |
| HDMI Video Resolution | 2K: 1920x1080P at 60FPS |
| HDMI Scale | Support 4:3, 16:9 screens |
| USB2.0 (Drive Free) | 1920 x 1080 at 60FPS / 1280 x 720 at 60FPS |
| Measurement Tool | Inbuilt Measurement software |
| AWB | AWB color correction / automatic / manual R.G.B value setting independent |
| Exposure | Automatic / manual. AE value can be set |
| Cross Line | 8 lines, color, width, position can be set; Scale Line: 2 lines |
| Dotted Line | 2 lines, color, width, position can be set |
| Sharpness Contrast Color Gain | Support |
| Mono Negative Film | Support |
| Mirror | Horizontal and vertical mirror |
| Output Interface | HDMI + USB Dual output |
| External Equipment | HDMI Monitor / Computer / Laptop |
| Image Quality Adjustment | Exposure, White Balance, Color, Brightness, Contrast, Saturation, Sharpness |
| Basic Function | Photography, measurement, USB storage, video recording |
| Camera Functions | Partial magnification, two/four screen comparison, magnification display, electronic magnification/reduction, built-in measurement system, USB storage |
| Language | English |
| Digital Zoom | Support |
| Infrared Mouse | Mouse wireless |
| Voltage Input | DC 12V |
