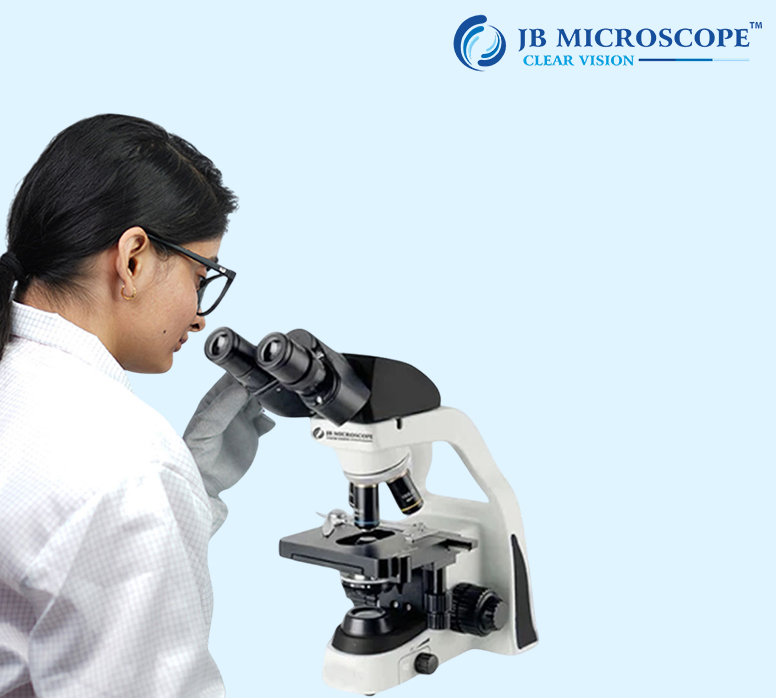

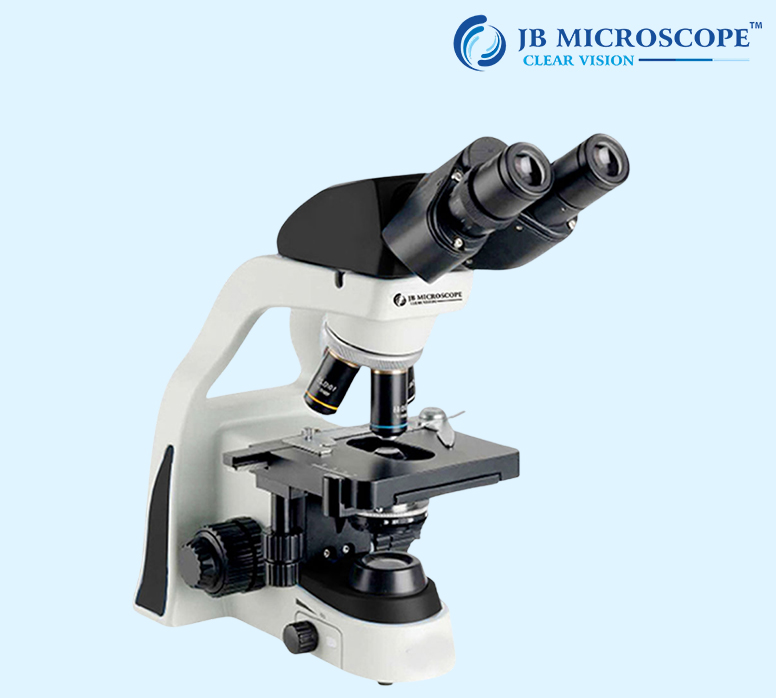

Outstanding image quality, is helpful for pathologist to understand and studied for gettting insight of the concerned biological specimen .JBM-B200 Biological Microscope System design for pathological & clinical application,with easy operat...
Outstanding image quality, is helpful for pathologist to understand and studied for gettting insight of the concerned biological specimen .JBM-B200 Biological Microscope System design for pathological & clinical application,with easy operation and clear image .its ergonomics design, handy coaxial coarse and fine adjustment,meet the demand of pathologist and clinic analyst. micro world, new vision. with PL10X/18MM wide field plan eyepiece,JBM-B200 Creates more comfortable observation experience. combined with optional plan achromatic objectives,JBM-B200 is able to provide a sharp image in natural color,immersive yourself to the micro world and satisfy your desire to explore the unknown.
| Technical Parameters | Specification |
|---|---|
| Brand | JB Microscope |
| Model No | JBM-B200 |
| Viewing Head | 30 degree inclined binocular head, with locking mechanism for eyepieces, right diopter |
| Adjustment | ±; Interpupillary distance range: 50-75mm |
| Eyepiece | Wide field plan eyepiece PL10X/18MM, able to attach pointer or reticle |
| Objective | Plan achromatic objectives 4X / 10X / 40X / 100X (Oil) |
| Frame | Low-position coarse and fine adjustment with stop and tighten structure, coarse range: 13mm (combined with fixed stage), 7mm (combined with mechanical stage); fine precision 0.002mm; 0.2W LED illumination (5700-6500K), intensity adjustable; power input 5V1A; (rechargeable frame for option) |
| Nosepiece | Quadruple nosepiece |
| Stage | Fixed stage with two clips (110x120mm; N.A.0.65 simple condenser); Double-layer mechanical stage (155x125mm; N.A.1.25 Abbe condenser with iris diaphragm and filter) |
