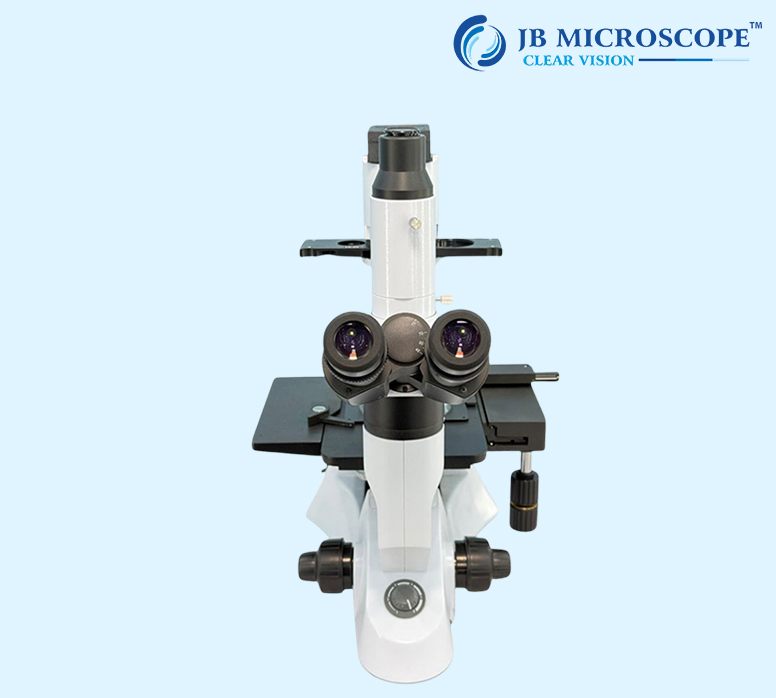

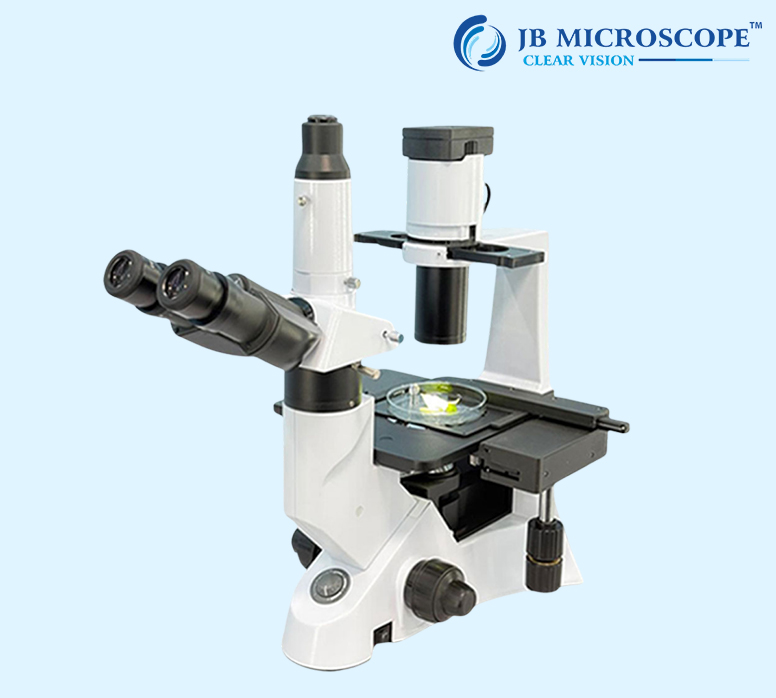

Tissue Culture Inverted Biological Microscope JBM‑41

Tissue Culture Inverted Biological Microscope JBM-41 is engineered based on the concept of energy conservation and environmental protection with an integrated ECO system.

The illumination power can be automatically turned on or off through infrared induction. Combining versatile observation modes such as bright field, phase contrast, and fluorescence all in one, and equipped with a comprehensive suite of laboratory accessories, it is an excellent choice for cell culture and advanced biological laboratory observation.

Based on the concept of energy conservation and environment protection, JBM-41 is designed with an integrated ECO system. The illumination power can be automatically turned on or off through infrared induction when the operator approaches or leaves the microscope, effectively extending lamp service life and minimizing laboratory power usage.

• All-In-One Observation Modes: Combining bright field, phase contrast, and fluorescence observation all in one versatile inverted platform
• Advanced Fluorescent Illumination: Kohler lighting with 5W LED containing three sets of excitation sources (385nm, 470nm, and 560nm)
• Synchronized Color Filter Sets: Equipped with UV1, B1, and G1 fluorescence color filter sets respectively; the predetermined center servo motor controls the light source to switch automatically with the color filter set
• Dual Temperature Transmitted Illumination: Cold/warm illumination options with cool color temperature (5000K) and warm color temperature (3000K)
• Demountable NA 0.3 Long Working Distance Condenser: Accommodates culture bottles, flasks, and petri dishes

• Infinity color corrected optical system delivering high numerical aperture and superior clarity
• 45° inclined trinocular head, 360° rotatable, with inter-pupillary adjustment range from 50mm to 75mm and 5:5 splitting ratio for simultaneous visual observation and digital documentation
• High eye-point wide-field plan eyepiece PL10X/22mm with diopter adjustment, compatible with attachable micrometer
• Quintuple revolving nosepiece loaded with Infinity Plan Achromatic Objectives: 4X, 10X, 20X, 40X, and 60X
• C-Mount camera adapter options: 0.35X, 0.5X, 0.65X, and 1X

• Biological frame with coaxial coarse and fine focusing system; coarse travel range 9mm (6.5mm up, 2.5mm down), fine focus precision 0.2mm with tension adjustment and upper limit stop
• Generous 215mm × 250mm fixed stage with attachable coaxial mechanical stage providing 120mm × 80mm travel range
• Comprehensive specimen holding accessories: extension plate, slide holder, petri dish holder, Terasaki multiwell holder, metal plate, and glass plate
• Built-in filter set: color temperature change filter, green interference filter, and infrared eliminate filters
