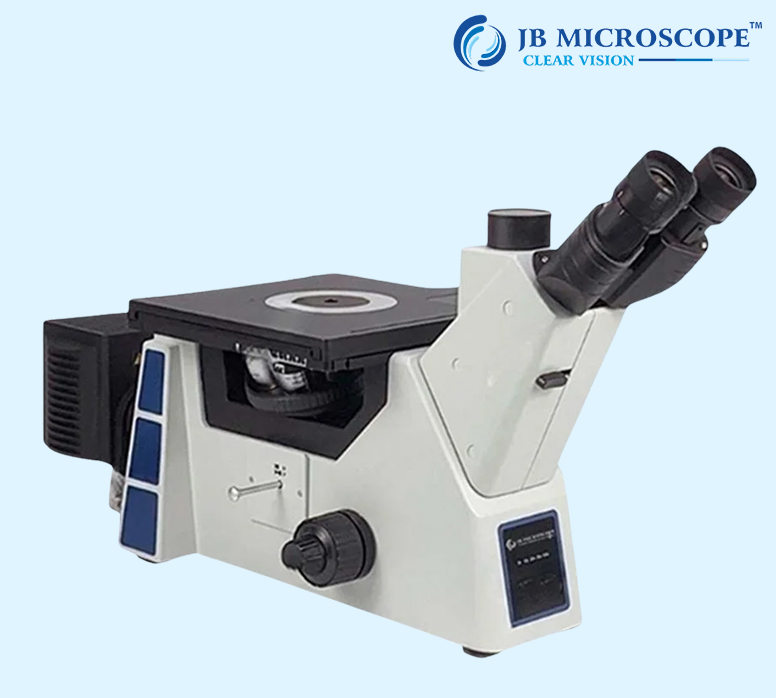

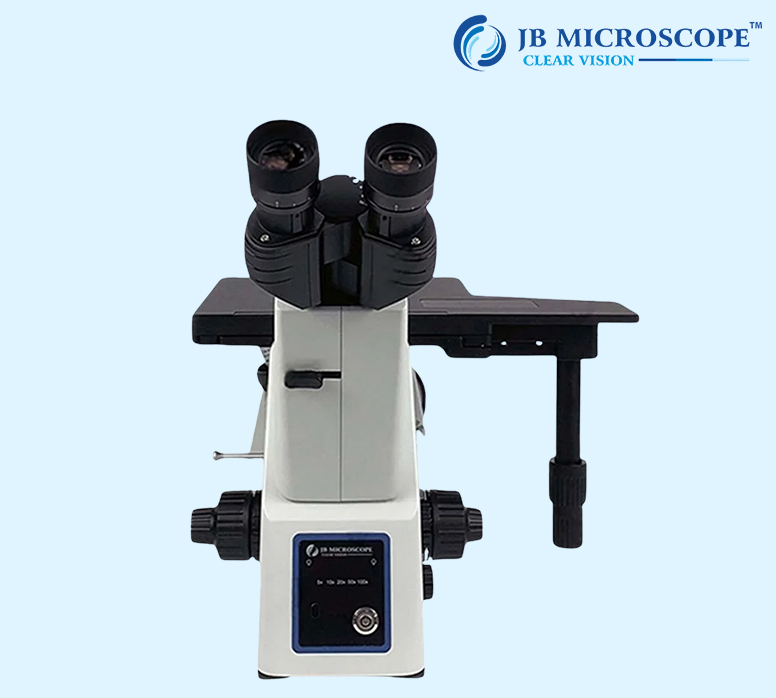

JBM-MM19 microscope is professional inverted metallurgical microscope, it is EPI-KOHLER illumination and metallurgical objective which brings the clear and sharp image. it also has wide field eyepiece and long working distance bright & dark...
JBM-MM19 microscope is professional inverted metallurgical microscope, it is EPI-KOHLER illumination and metallurgical objective which brings the clear and sharp image. it also has wide field eyepiece and long working distance bright & dark field infinite plan objective and polarization device, it is a large scientific research level metallurgical microscope, it meets the demand of all kinds of metallography analysis and casting & forging metal inspection.
| Technical Parameters | Specification |
|---|---|
| Brand | JB MICROSCOPE |
| MODEL NO | JBM-MM19 |
| Optical System | Infinity Colour Corrected Optical System |
| Frame | One-piece Construction, With Filter Slot & Polarizing Slot |
| Head | Trinocular Head, Split Ratio 100:0 or 0:100, 45° Inclined, 360° Rotatable, IPD 50-75mm |
| Eyepiece | Plan WF10x/22mm, Diopter Adjustable, Reticle Attachable, High Eye-point |
| Field | Bright & Dark Field, With BD Shifter |
| Objectives | Infinity LWD BD Plan Achromatic: DIC-5x/0.15 (WD11mm), DIC-10x/0.3 (WD9.5mm), DIC-20x/0.45 (WD3.4mm), 50x/0.55 (WD7.5mm) |
| Focus System | Coaxial Coarse & Fine Focusing, Coarse Range 9mm (6.5mm up & 2.5mm down), Fine Precision 2µm |
| Nosepiece | BD Quintuple Nosepiece With DIC Slot |
| Stage | Three-Layer Mechanical Stage, Size 240x250mm, Moving Range 50x50mm, Bothway Linear Guide Rail, Specimen Holder (Dia. 25) |
| Light Source | Reflected Halogen Lamp 12V100W, Brightness Adjustable, ECO Infrared Induction System (Auto on/off), External Transformer 100V-240V Input |
| Polarization | Polarizer & 360° Analyzer |
