Trinocular Inverted Metallurgical Microscope JBM‑MM18

JBM-MM18 Trinocular Inverted Metallurgical Microscope is equipped with professional metallurgical objectives and plan eyepiece which provide clear image & comfortable observation. It is widely used to identify & analyze the structure of var...

Key Specifications

LWD Infinity Plan BF Objectives LPL 5x/0.13 (WD 16.04mm), 10x/0.25 (WD 18.48mm), 20x/0.40 (WD 8.35mm), 50x/0.70 (WD 1.95mm), 80x/0.80 (WD 0.85mm), 100x/0.90 Dry (WD 1.10mm)

LWD Infinity Plan BD Objectives LPL 5x/0.13BD (WD 16.04mm), 10x/0.25BD (WD 18.48mm), 20x/0.40BD (WD 8.35mm), 50x/0.70BD (WD 1.95mm)

Illumination Koehler Halogen 12V/50W or 5W LED, 100V-240V, ECO Auto Power Off System

View Product PDF Call +91-9354741245

Product Overview

Features & Operational Capabilities

Equipped with professional metallurgical objectives (Brightfield & Darkfield) and plan eyepieces
Seidentopf Trinocular Head inclined 30°, IPD 48~76mm
ECO Auto Power Off System: Automatically powers off when user leaves for 10 minutes, powers on automatically when approaching user is detected
Dual illumination options: Koehler Illumination Halogen 12V/50W or Koehler Illumination 5W LED (100V-240V)
Coaxial coarse & fine focusing with 10mm travel, fine division 0.002mm
Large working stage (210x180mm) with 50x50mm moving range and multiple sample plates
Polarizing analysis kit with Analyzer + Polarizer set

Technical Parameters

Factory Tested Values

Technical Parameters	Specification
Brand	JB MICROSCOPE
MODEL	JBM-MM18
Head	Seidentopf Trinocular Head Inclined 30°, Interpupillary Distance 48~76mm
Eyepiece	WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable
Nosepiece	Quintuple; Quadruple (Specially For Bright & Dark Field objectives)
LWD Infinity Plan BF Objectives	LPL 5x/0.13 (WD 16.04mm), 10x/0.25 (WD 18.48mm), 20x/0.40 (WD 8.35mm), 50x/0.70 (WD 1.95mm), 80x/0.80 (WD 0.85mm), 100x/0.90 Dry (WD 1.10mm)
LWD Infinity Plan BD Objectives	LPL 5x/0.13BD (WD 16.04mm), 10x/0.25BD (WD 18.48mm), 20x/0.40BD (WD 8.35mm), 50x/0.70BD (WD 1.95mm)
Working Stage	Stage Size 210x180mm, Moving Range 50x50mm, Scale 0.1mm, Round Plate Size Dia.110mm, Round Plate With Oval Hole
Focusing	Coaxial Coarse & Fine Focusing, Coarse Travel 10mm, Fine Div. 0.002mm, Fine Stroke Per Rotation 0.2mm
Polarizing	Analyzer + Polarizer Set
Illumination	Koehler Halogen 12V/50W or 5W LED, 100V-240V, ECO Auto Power Off System
Power Sensing	Power Off Automatically Upon User Leaving 10 Mins, Power On Automatically Upon User Approaching Detected
Filters & Adapters	Blue, Green, Amber, Grey (Dia.34mm); C-Mount 0.5x, 0.75x Focus Adjustable
Package & Weight	Packing Size: 660x590x325mm; Gross Weight: 17 kgs, Net Weight: 12.5 kgs

Product Gallery & Inspection Views

Trinocular Inverted Metallurgical Microscope JBM-MM18 view 1

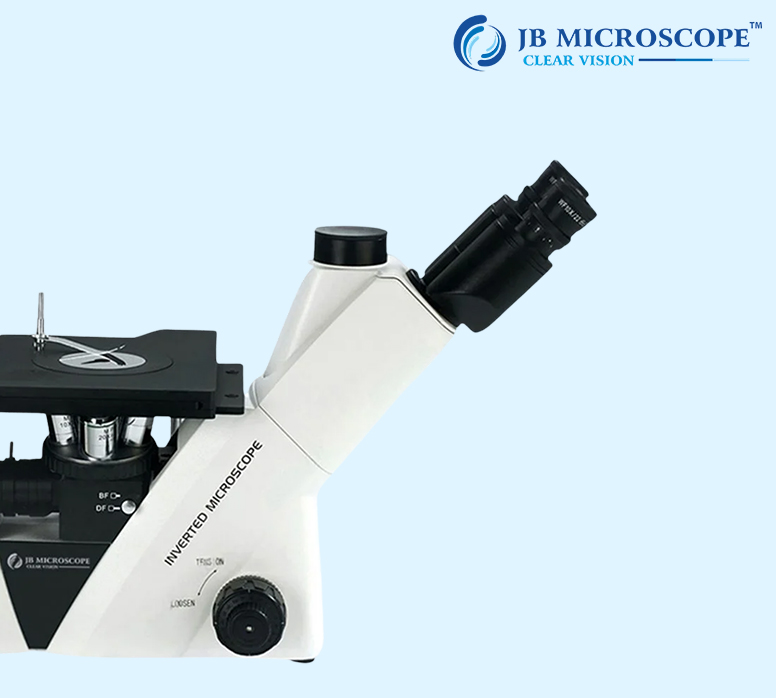

Trinocular Inverted Metallurgical Microscope JBM-MM18 view 2

Official Product Datasheet

Download the complete technical brochure and engineering drawing for Trinocular Inverted Metallurgical Microscope JBM-MM18.

Open PDF Datasheet
