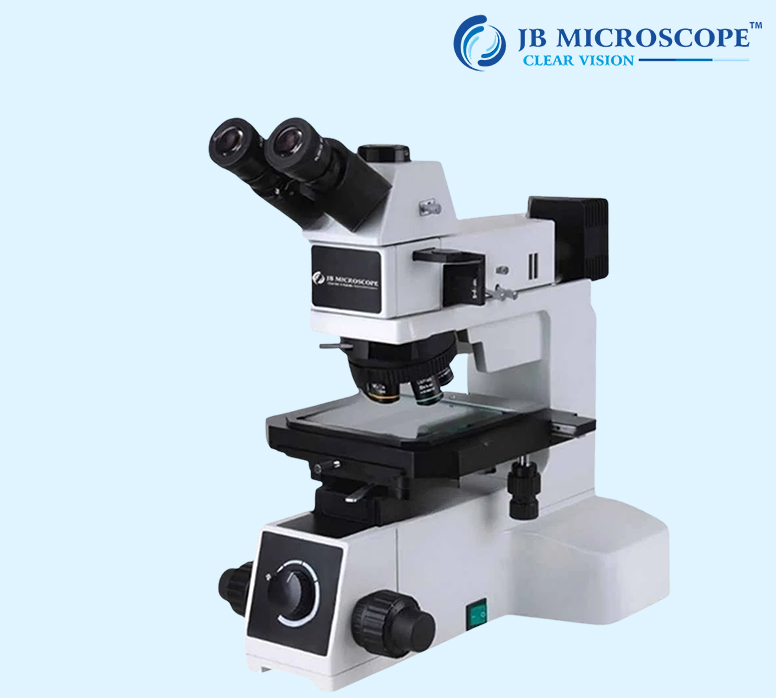

Upright Metallurgical Microscope with a trinocular setup is an indispensable asset for professionals seeking to delve into the nuance world of metallurgical analysis. With its combination of advanced optics and trinocular functionality, it ...
Upright Metallurgical Microscope with a trinocular setup is an indispensable asset for professionals seeking to delve into the nuance world of metallurgical analysis. With its combination of advanced optics and trinocular functionality, it empowers users to uncover vital insights, advancing both research and industrial applications in the realm of materials science.
| Product Features | Specification |
|---|---|
| Brand Name | JB MICROSCOPE |
| MODEL | JBM-06RF |
| Eyepieces | High Eye-point Wide Field Plan Eyepiece PL10X / 22mm |
| Head | 5-35° tilt angle adjustable, Erect image, IPD 50-76mm, splitting ratio R:T=100:0 or 0:100 (supports 22/23/16mm FOV) |
| Objectives | Infinity LWD B&D Plan Achromatic Metallurgical Objectives 5X, 10X, 20X, 50X, 100X |
| DIC | DIC Slider (for Infinity LWD B&D plan achromatic metallurgical objectives 5x, 10x, 20x) |
| Condenser | B&D reflect illumination, iris field diaphragm & aperture diaphragm, filter & polarizing slots, bright/dark field switch |
| Nosepiece | Backward quintuple nosepiece, with DIC slot |
| Focus | Coaxial coarse & fine adjustment, coarse 33mm, precision fine: 0.001mm, with coarse stop & tightness adjustment |
| Stage | 6" double layers mechanical stage 445x240mm, Reflected moving 158x158mm, Transmitted moving 100x100mm, with glass insert |
| Reflected Illumination | 12V100W Halogen lamp house, Pre-Centering 12V100W Halogen lamp |
| Transmitted Illumination | Built-in 5W LED transmitted light illumination system |
| Polarizing Kit | Polarizer (for reflection), 360° Rotatable analyzer, Fixed analyzer |
| Accessories | 6 inch Rotatable plate for 4, 5, 6 inch Wafer; High-precision micrometer grid 0.01mm; 0.5X camera adapter |
| IF Filters | Blue (≤480nm), Green (520-570nm), Red (630-750nm), Natural IF Filter |
